Description

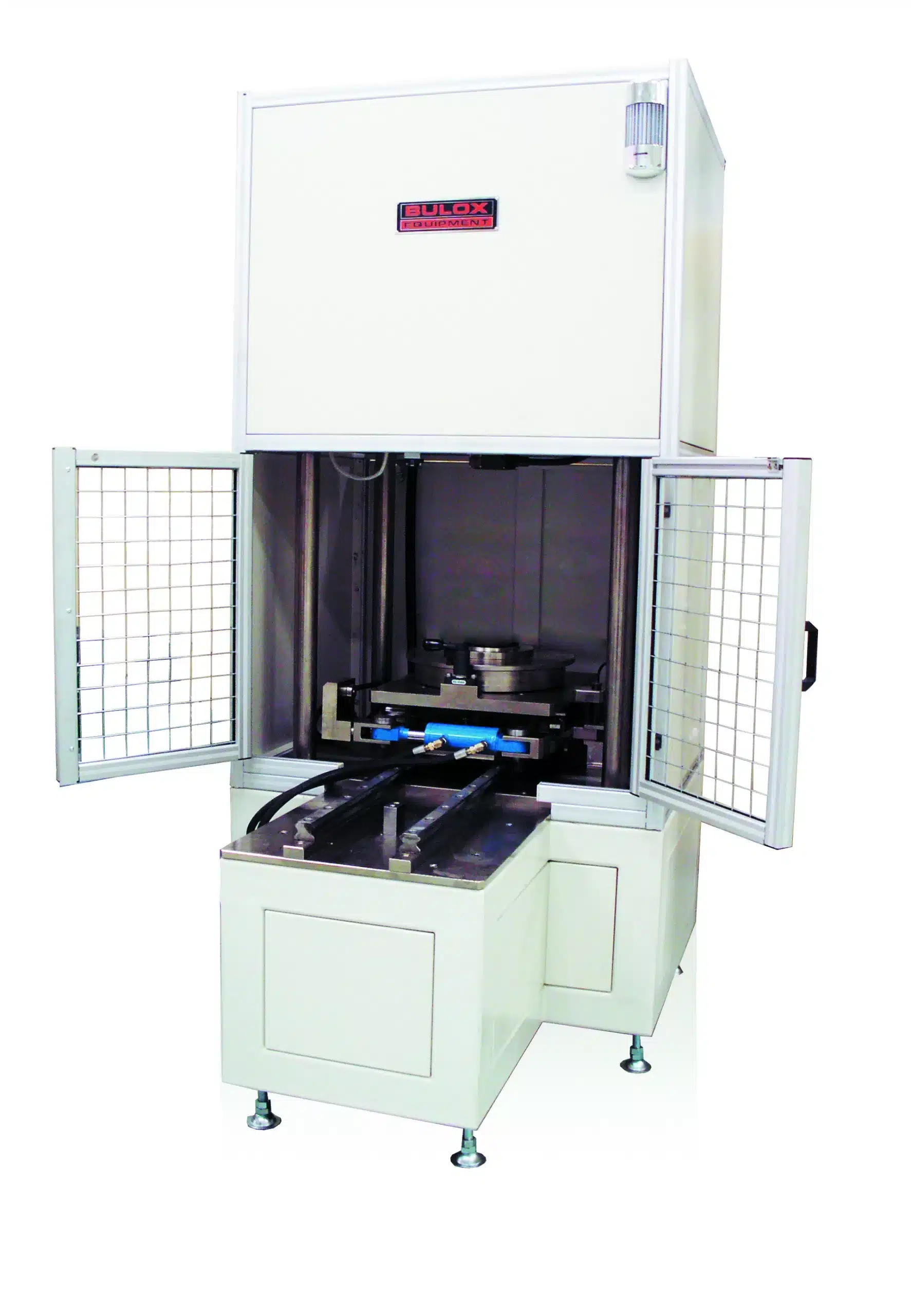

The Chevron Spring Test Rig is designed to perform comprehensive performance tests on Bogie Chevron Springs, evaluating axial load and deflection. This hydraulically operated, stationary, and non-destructive testing system ensures precise and reliable assessment of spring performance.

During testing, the Chevron Spring is compressed using a hydraulic ram, applying a controlled force before releasing it to measure the spring stroke. The system automatically records and prints a pressure-stroke graph, providing accurate test data for detailed analysis and quality assurance.
