Track Geometry Measuring System (TGMS)

Track Geometry Measuring System (TGMS)

Track irregularities can lead to unsafe train operations, excessive wear, and service delays if not identified and addressed early. The Track Geometry Measuring System (TGMS) by Bulox Equipment offers a high-precision solution for evaluating key track geometry parameters such as alignment, gauge, cant, and level. Designed for integration with inspection vehicles or maintenance fleets, TGMS supports continuous condition monitoring and data-driven maintenance decisions — helping railway operators improve safety, reduce long-term costs, and ensure smooth, uninterrupted train movement.

Description
Download E-Catalogue

Description

The Track Geometry Measurement System (TGMS) is designed for automatic measurement of track geometry to ensure that all critical parameters and profiles remain within tolerance limits.

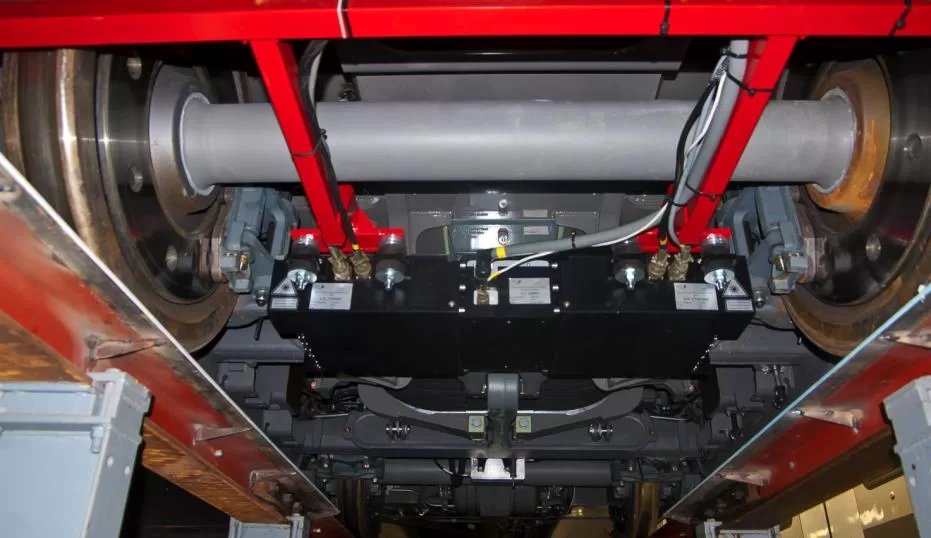

The system can function as a manually operated standalone unit or be integrated into a self-propelled inspection and measuring vehicle/trolley. It can also be vehicle-mounted, allowing for real-time track geometry diagnostics during operation. Measuring instruments are installed on a rigid frame mounted on the vehicle bogie, with video recording and data printing capabilities for detailed analysis and reporting.
